Caliber 3251 [message #16028]

Sun, 23 January 2022 03:57

JackW
Messages: 2013
Registered: May 2013
Location: Denver

Gruen Authority
Head Janitor
Site Admin

Following the more recent posts to the caliber database...

Caliber: 3251 or 325-1 for the 21 jewel version; 325 for the 17 jewel version
Movement supplied by: Unknown
Size: 8-3/4 x 12 ligne
Jewel Markings: 21 Jewels
Adj Markings: 5 Adj
Config: tonneau
Dial feet: 11 & 5 positions
Example date: circa 1937

The cal 325 is 17 jewel version. The 3251 has in addition, a jeweled center wheel (2) and capped jewels on the the pallet (4).
Both versions have a capped escape wheel (4).

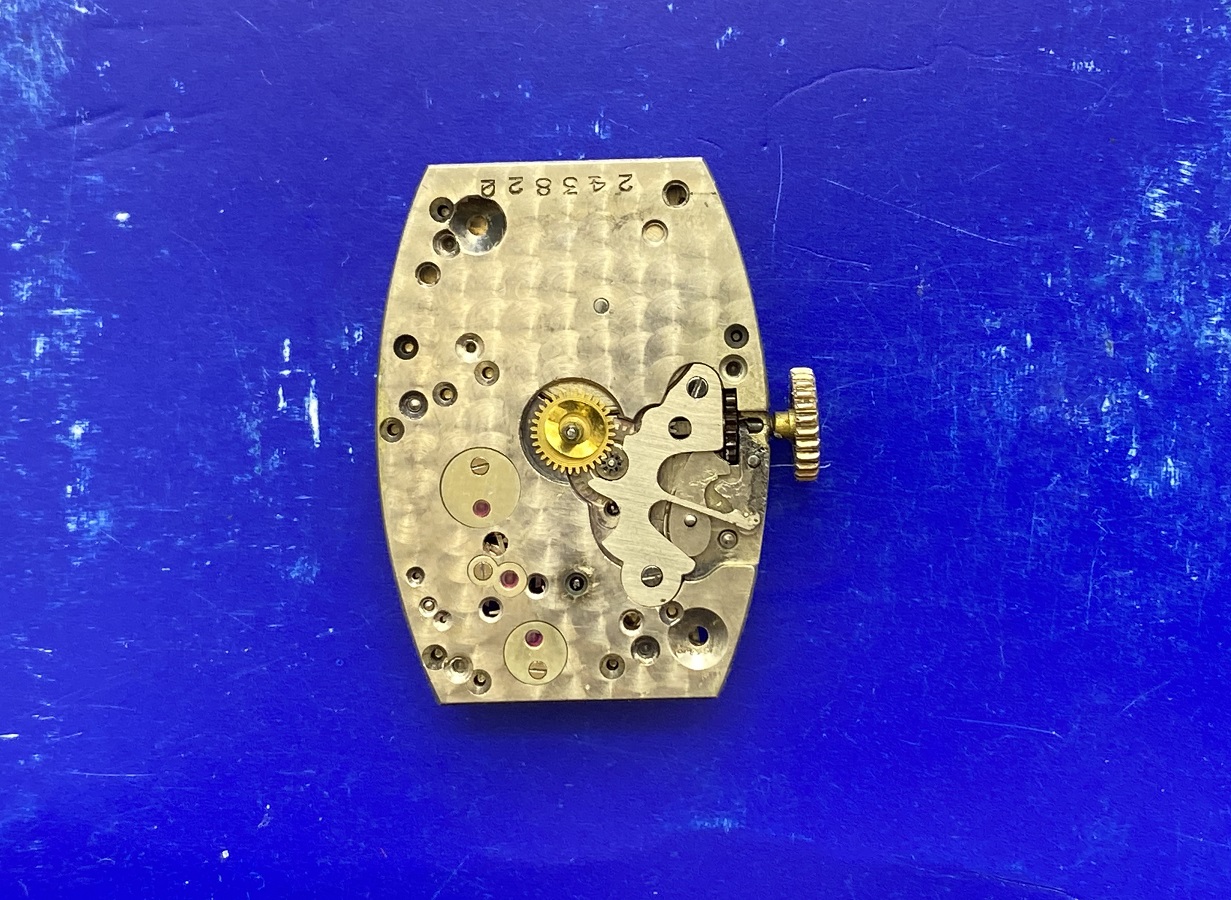

Shown here is the 21 jewel version:
/vgforum/index.php?t=getfile&id=8945&private=0

/vgforum/index.php?t=getfile&id=8945&private=0

/vgforum/index.php?t=getfile&id=8944&private=0

/vgforum/index.php?t=getfile&id=8973&private=0

*just acquired this movement and was looking through the other posts. Did not see this model in the DB nor could I find a post that shows the top and bottom.

Attachment: IMG_8120_sm.jpg
(Size: 431.07KB, Downloaded 1445 times)
Attachment: IMG_8118_sm.jpg
(Size: 438.58KB, Downloaded 1477 times)
Attachment: IMG_8155_sm.jpg
(Size: 371.47KB, Downloaded 1444 times)

All I know is based on hard work & writing by others. I can only aspire to augment this body of knowledge. If I am wrong it is because of my own failings. -me

"If I have seen farther it is by standing on the shoulders of giants." - Newton

[Updated on: Sat, 29 January 2022 22:59]
