How to remove the back and movement from a two-piece wrist watch case [message #1608]

Thu, 26 September 2013 01:06

Gary
Messages: 2189
Registered: May 2013
Location: Seattle

Gruen Authority
Cheerleader

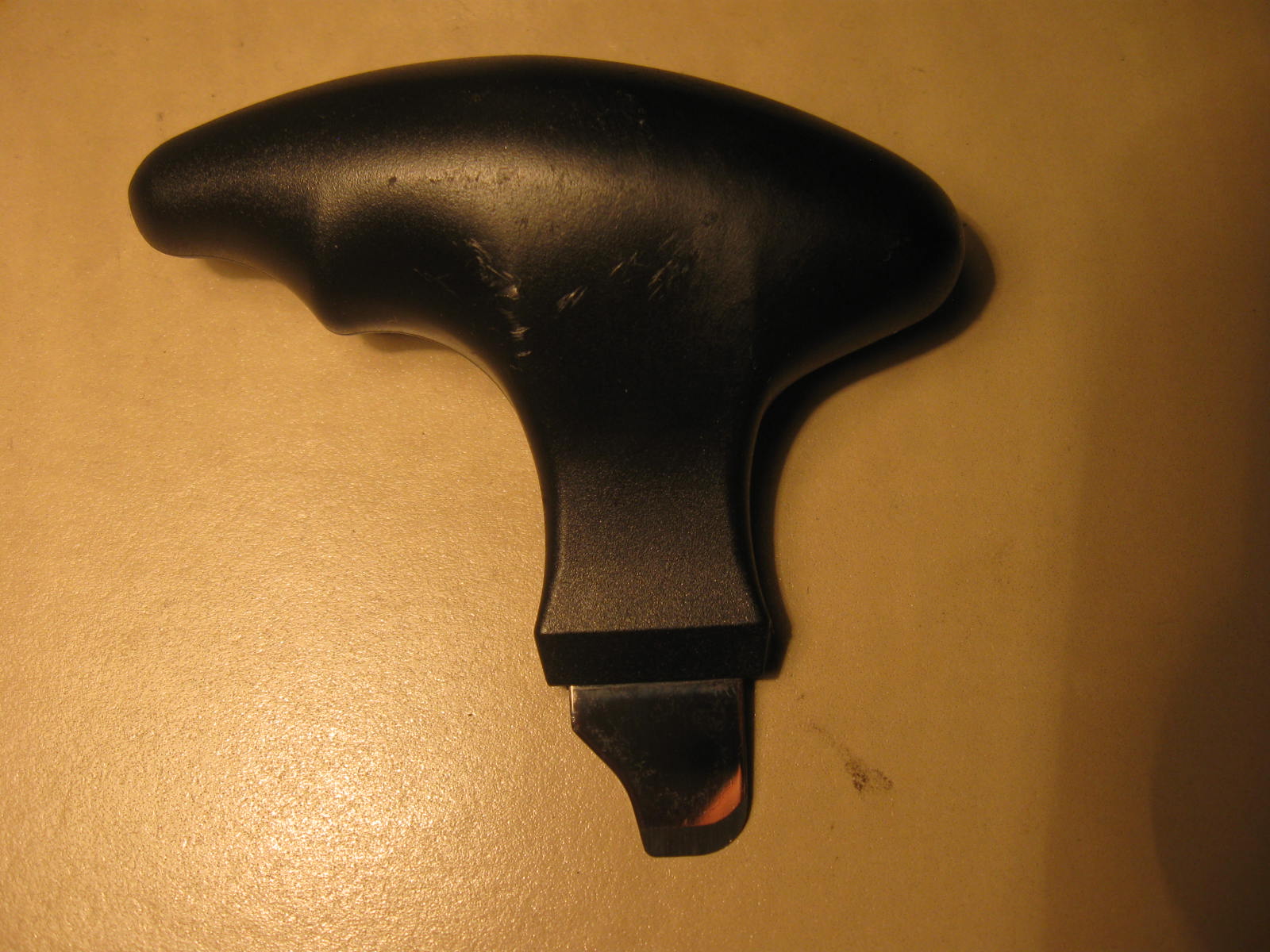

Tools needed: Bench knife or case opener. I like using the case opener.
index.php?t=getfile&id=679&private=0

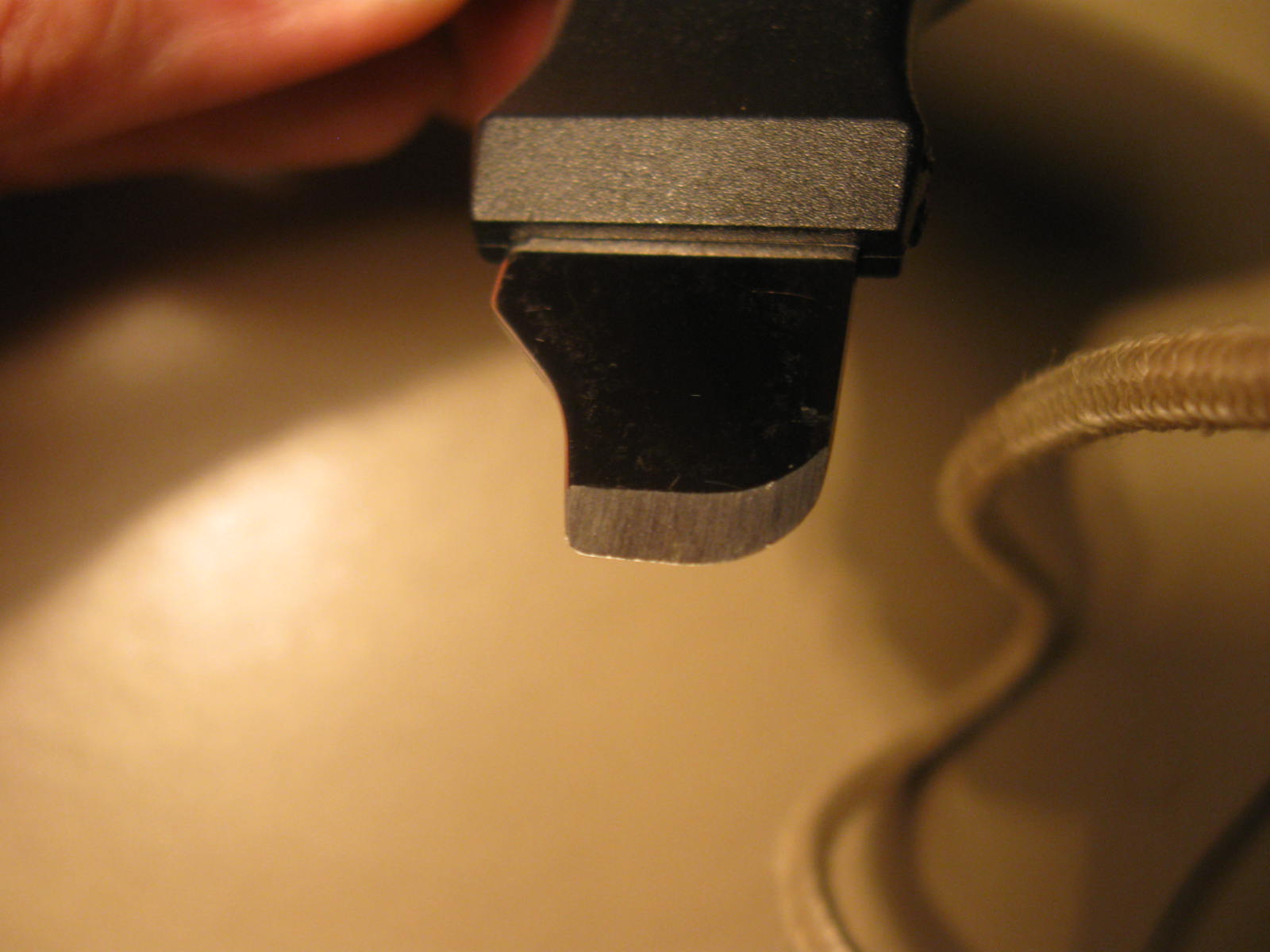

If you don't have a case opener, find something that has a fairly sharp edge to it.
index.php?t=getfile&id=680&private=0

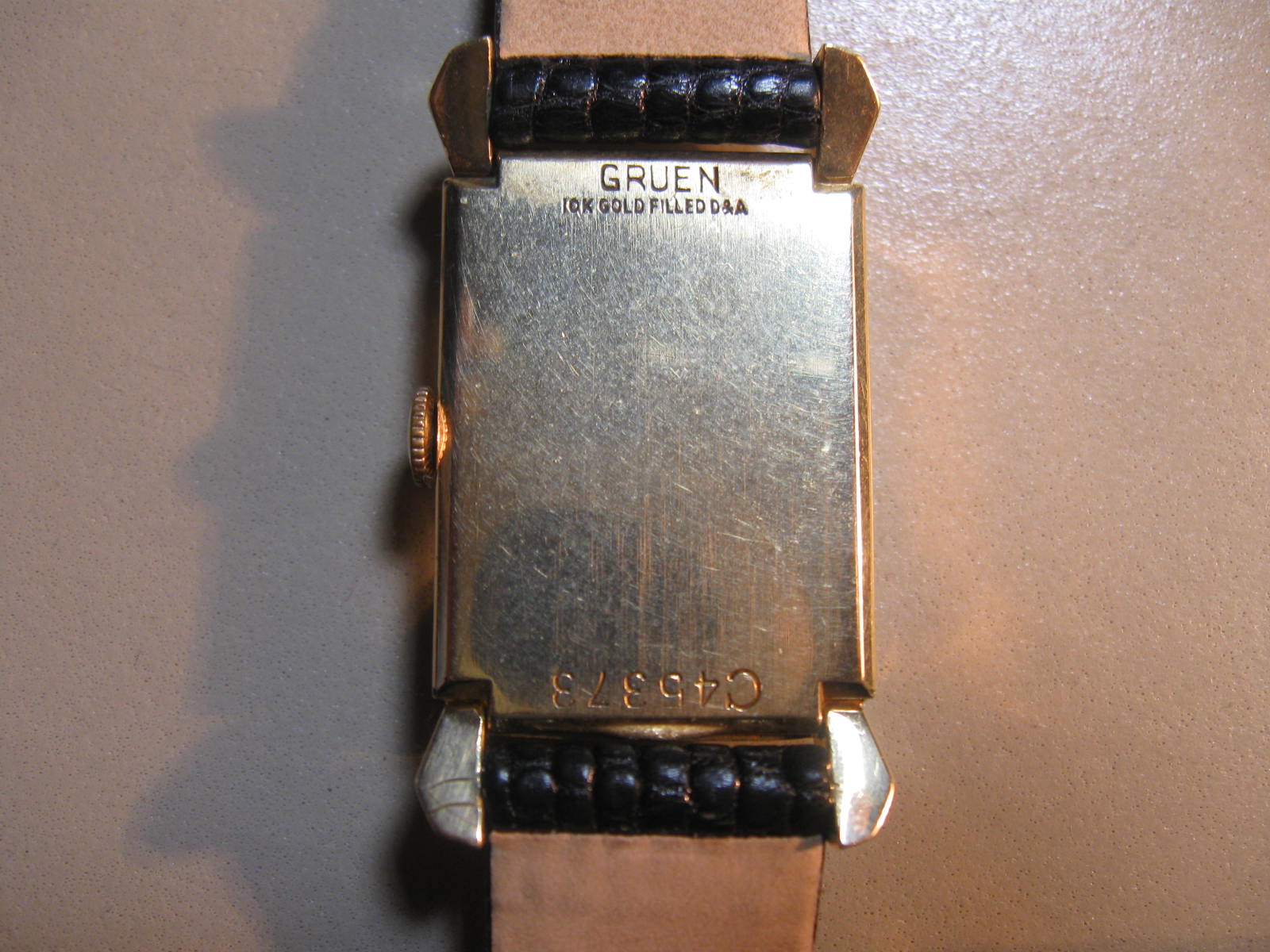

1. Hold the case of the watch with the back facing up. Find the lip, in the picture below the lip is shown at the bottom.
index.php?t=getfile&id=678&private=0

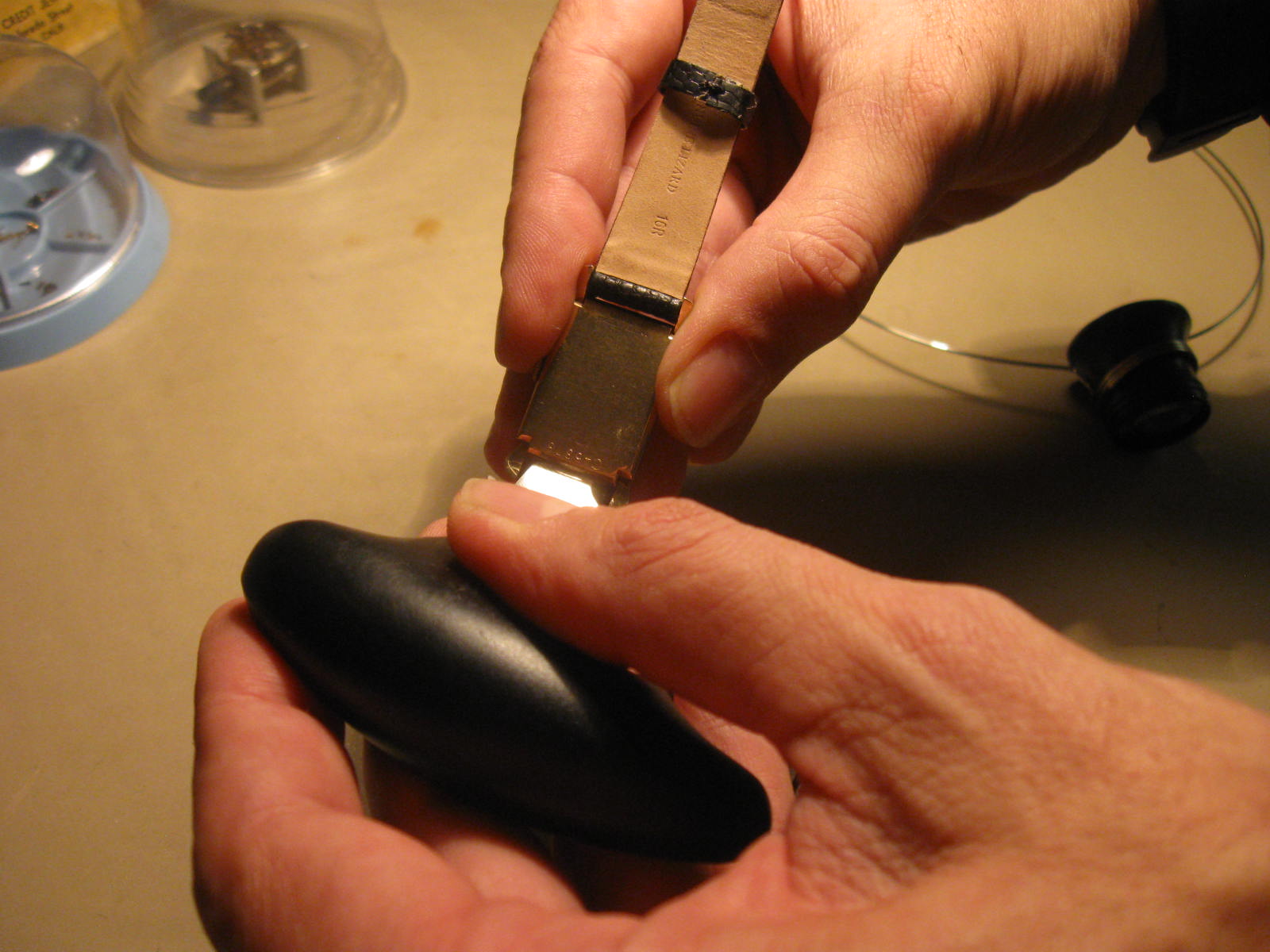

2. Using the case opener, pry upward under the lip. The back of the case and movement will snap free from the bezel. Note: I always have the watch band attached or at least the pins in place. I use this for leverage and it keeps the opener blade from marring the case.
index.php?t=getfile&id=681&private=0

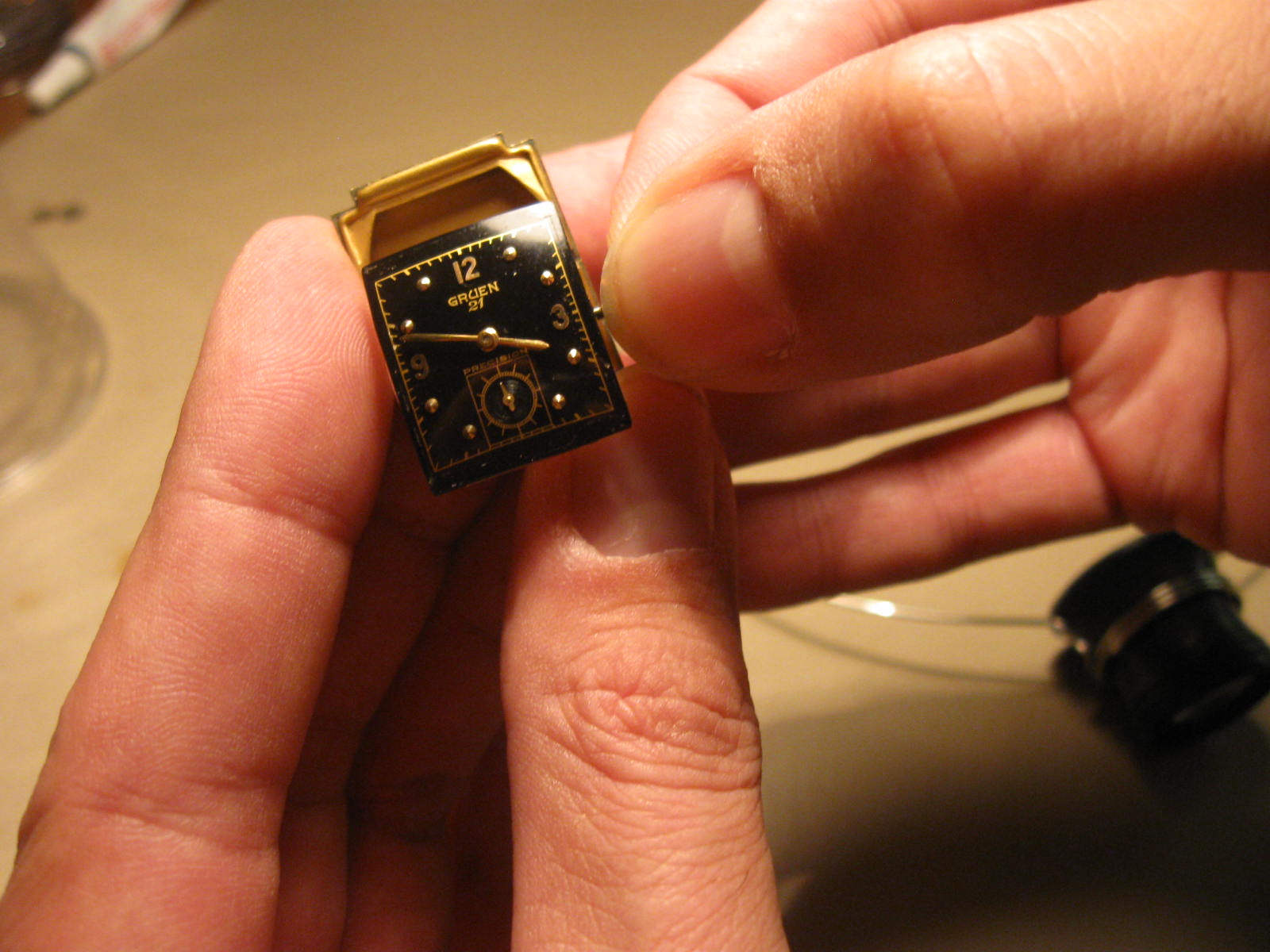

3. The movement fits tight into the back of the case. Jiggle the crown and the movement should release itself from the back of the case.
index.php?t=getfile&id=682&private=0

That's it! The happy path to opening a two-piece wrist watch case.

Attachment: img_3666.jpg
(Size: 256.14KB, Downloaded 3205 times)
Attachment: img_3677.jpg
(Size: 231.77KB, Downloaded 3357 times)
Attachment: img_3678.jpg
(Size: 135.67KB, Downloaded 3209 times)
Attachment: img_3669.jpg
(Size: 190.49KB, Downloaded 3170 times)
Attachment: img_3671.jpg
(Size: 195.33KB, Downloaded 3275 times)
