The Caliber 181/183 [message #5660]

Mon, 06 July 2015 17:22

Gary
Messages: 2420
Registered: May 2013
Location: Seattle

Gruen Authority
Cheerleader

The 181 and 183 are practically identical in size and interchangeability at 4 3/4'''. The 181 is a 15 jewel and the 183 is a 7 jewel movement.

index.php?t=getfile&id=2352&private=0

181 (left) 183 (right)

Attachment: 181.jpg
(Size: 234.66KB, Downloaded 2029 times)

Report message to a moderator

Re: The Caliber 181/183 [message #18981 is a reply to message #5660]

Sun, 30 June 2024 22:05

Jenneke
Messages: 2077
Registered: May 2013
Location: Netherlands

Gruen Authority

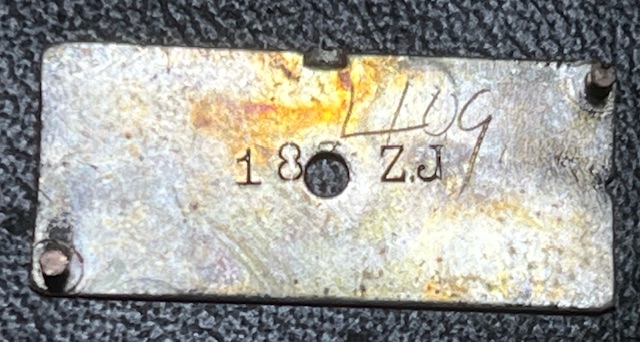

Dial side of an 183
/vgforum/index.php?t=getfile&id=11125&private=0

/vgforum/index.php?t=getfile&id=11126&private=0

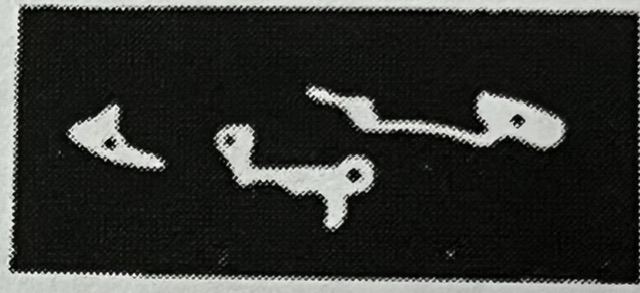

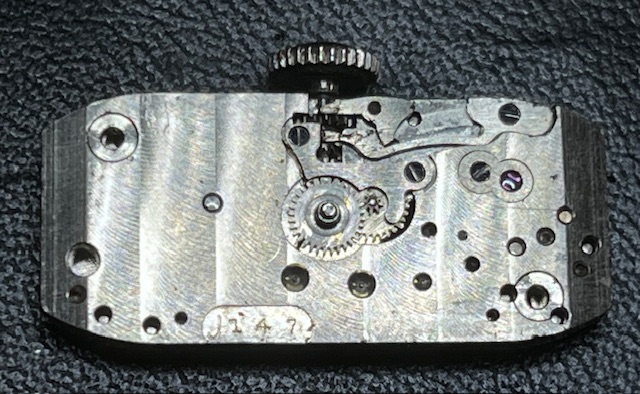

Keyless works parts look very similar to marc favre movements. In particular the yoke.
/vgforum/index.php?t=getfile&id=11128&private=0

/vgforum/index.php?t=getfile&id=11129&private=0

/vgforum/index.php?t=getfile&id=11130&private=0

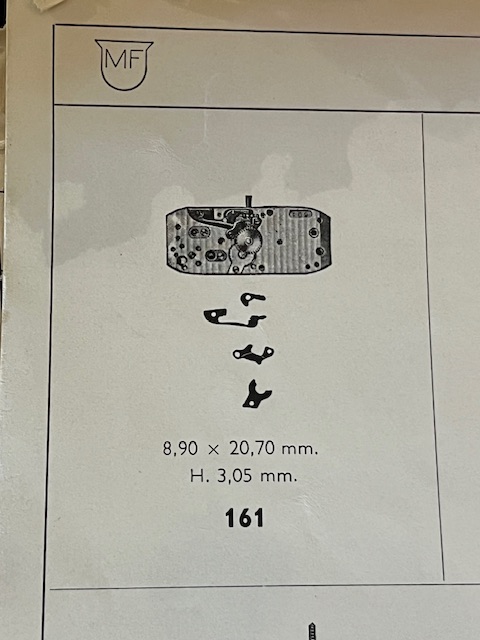

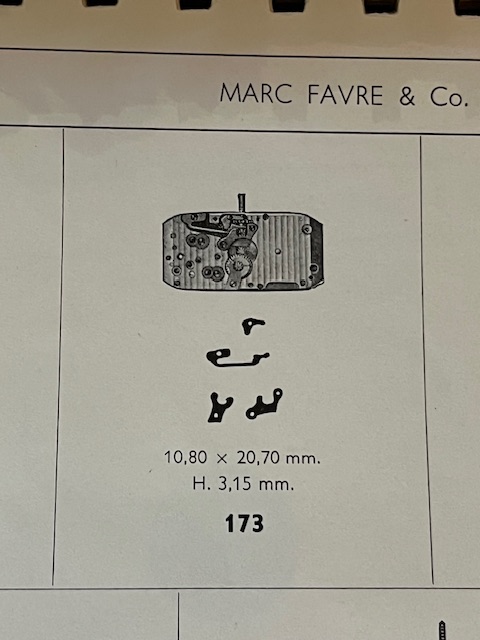

Searched in the Official catalogue of swiss watch repair parts.

caliber number also in the range of proven favre calibers 1xx.

169 is also in the family (11 jewels)

Attachment: IMG_1924.jpeg
(Size: 77.48KB, Downloaded 1288 times)
Attachment: IMG_2127.jpeg
(Size: 51.80KB, Downloaded 1276 times)
Attachment: IMG_1818.jpeg
(Size: 115.11KB, Downloaded 1283 times)
Attachment: IMG_1819.jpeg
(Size: 141.11KB, Downloaded 1289 times)
Attachment: IMG_1925.jpeg
(Size: 82.77KB, Downloaded 1272 times)

You can only waste time if you forget to enjoy it - Loesje

[Updated on: Sun, 30 June 2024 22:06]

Report message to a moderator

Re: The Caliber 181/183 [message #18983 is a reply to message #18981]

Mon, 01 July 2024 04:25

JackW
Messages: 2120
Registered: May 2013
Location: Denver

Gruen Authority
Head Janitor
Site Admin

I think the ZJ marking on the dial is for Fluckiger.

All I know is based on hard work & writing by others. I can only aspire to augment this body of knowledge. If I am wrong it is because of my own failings. -me

"If I have seen farther it is by standing on the shoulders of giants." - Newton

Report message to a moderator

Re: The Caliber 181/183 [message #18985 is a reply to message #18983]

Mon, 01 July 2024 04:59

Jenneke
Messages: 2077
Registered: May 2013
Location: Netherlands

Gruen Authority

Yes, it is a Zelim Jacot dial. Many of the ladies cartouches are.

You can only waste time if you forget to enjoy it - Loesje

Report message to a moderator
