Sweep Seconds Wheel for 803SS [message #4346] Sat, 18 October 2014 12:24 Go to next message
koskid is currently offline  koskid
Messages: 37
Registered: March 2014
Location: San Francisco
Gruen Apprentice

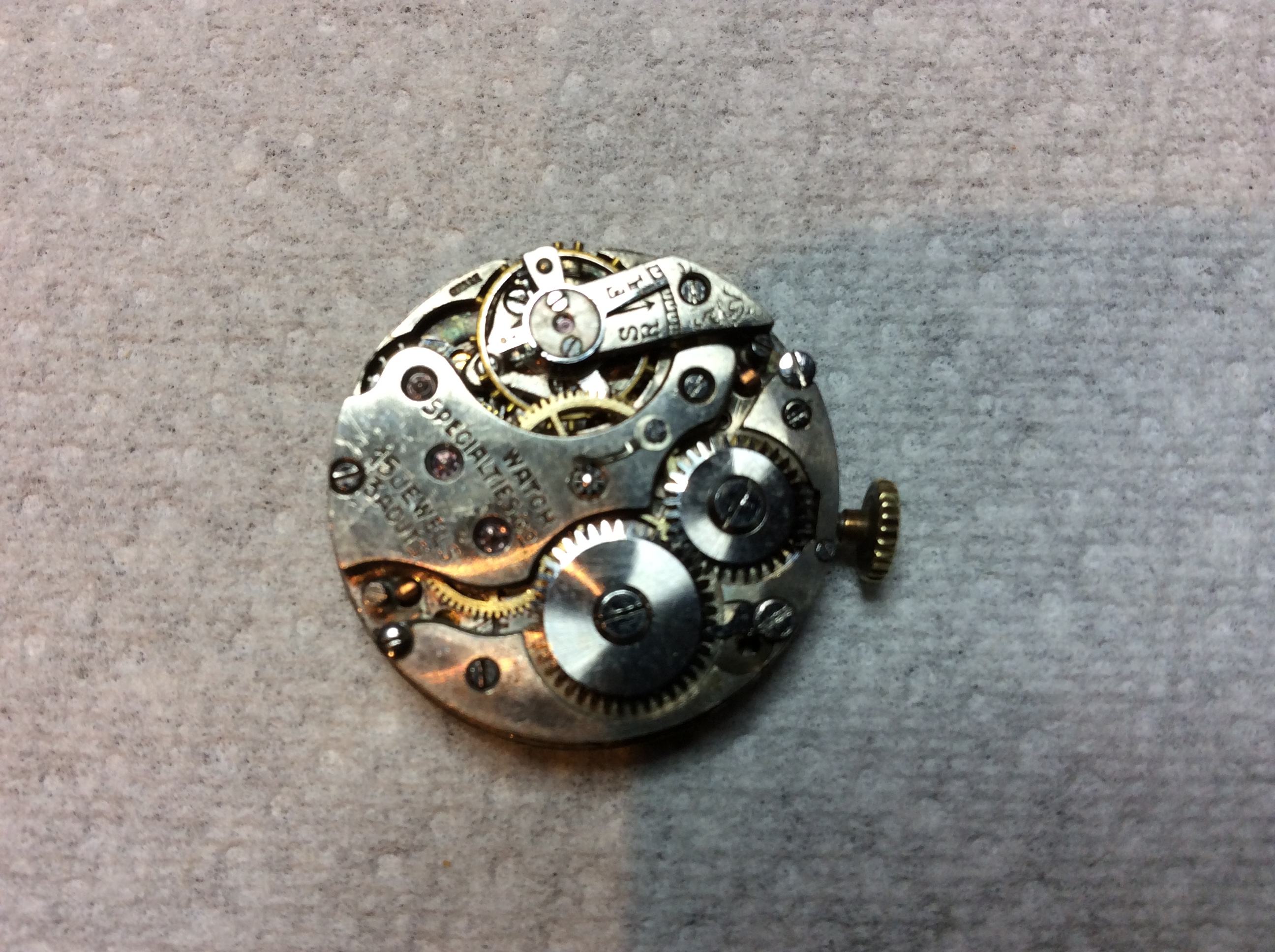

I picked up a nurses watch with an 803ss movement that's missing the sweep seconds wheel. Has anyone got one that will fit.
index.php?t=getfile&id=1761&private=0
  • Attachment: IMG_0225.JPG
    (Size: 1.37MB, Downloaded 1749 times)

Report message to a moderator

Re: Sweep Seconds Wheel for 803SS [message #4586 is a reply to message #4346] Sat, 15 November 2014 20:14 Go to previous messageGo to next message
koskid is currently offline  koskid
Messages: 37
Registered: March 2014
Location: San Francisco
Gruen Apprentice
Couldn't find a sweep seconds wheel, so I thought I'd try and make one.

Progress photos below, more to come later.

Donor 3/0 pocket watch movements.
index.php?t=getfile&id=1873&private=0

Homemade anvil since I don't have a staking tool.
index.php?t=getfile&id=1869&private=0

Ready to remove pinion.
index.php?t=getfile&id=1870&private=0

Looks like it should fit.
index.php?t=getfile&id=1872&private=0

Report message to a moderator

Re: Sweep Seconds Wheel for 803SS [message #4587 is a reply to message #4586] Sat, 15 November 2014 21:42 Go to previous messageGo to next message
JackW is currently offline  JackW
Messages: 2011
Registered: May 2013
Location: Denver
Gruen Authority
Head Janitor
Site Admin
Is it the right tooth count? Also, if you need to remake the retaining spring, a bit of length from a broken mainspring will work.

All I know is based on hard work & writing by others. I can only aspire to augment this body of knowledge. If I am wrong it is because of my own failings. -me

"If I have seen farther it is by standing on the shoulders of giants." - Newton

Report message to a moderator

Re: Sweep Seconds Wheel for 803SS [message #4591 is a reply to message #4587] Sun, 16 November 2014 02:05 Go to previous message
koskid is currently offline  koskid
Messages: 37
Registered: March 2014
Location: San Francisco
Gruen Apprentice
Tooth count is correct. That was the hardest part in finding a suitable donor. Newer vintage movements have finer tooth profiles and higher tooth counts. I might have to make a retaining spring also, we'll see if I can straighten the one that's there.

Report message to a moderator
