FOUND Pallet Fork / Arbor 430 [message #17285]

Mon, 12 September 2022 07:17

Benjamin_Rush
Messages: 94
Registered: June 2022
Location: USA

Gruen Apprentice

Smashed the pivot on the 435 pallet arbor I've been servicing.

/vgforum/index.php?t=getfile&id=9894&private=0

/vgforum/index.php?t=getfile&id=9896&private=0

Not content to call it a night, I pulled the pallet fork from my donor 335 and smashed its arbor pivot too. Embarrassed

/vgforum/index.php?t=getfile&id=9895&private=0

/vgforum/index.php?t=getfile&id=9897&private=0

Almost done with this service. FOUND the last replacement pallet fork in the swamp. Interchange catalog shows this as a caliber 430 part.

Thanks in advance!

Attachment: PXL_20220912_065420913.jpg
(Size: 408.61KB, Downloaded 1441 times)
Attachment: PXL_20220912_061652391.jpg
(Size: 1.01MB, Downloaded 1453 times)
Attachment: PXL_20220912_022729698.jpg
(Size: 741.48KB, Downloaded 1431 times)
Attachment: PXL_20220912_055418066.jpg
(Size: 1.36MB, Downloaded 1458 times)

[Updated on: Sun, 18 September 2022 05:40]

Report message to a moderator

Re: FOUND Pallet Fork / Arbor 430 [message #17313 is a reply to message #17285]

Sun, 18 September 2022 05:53

Benjamin_Rush
Messages: 94
Registered: June 2022
Location: USA

Gruen Apprentice

FOUND, thank you Dietrich.

Make sure to check your jewels under 15x, you might find a detached pivot in there, ideally before you break another.

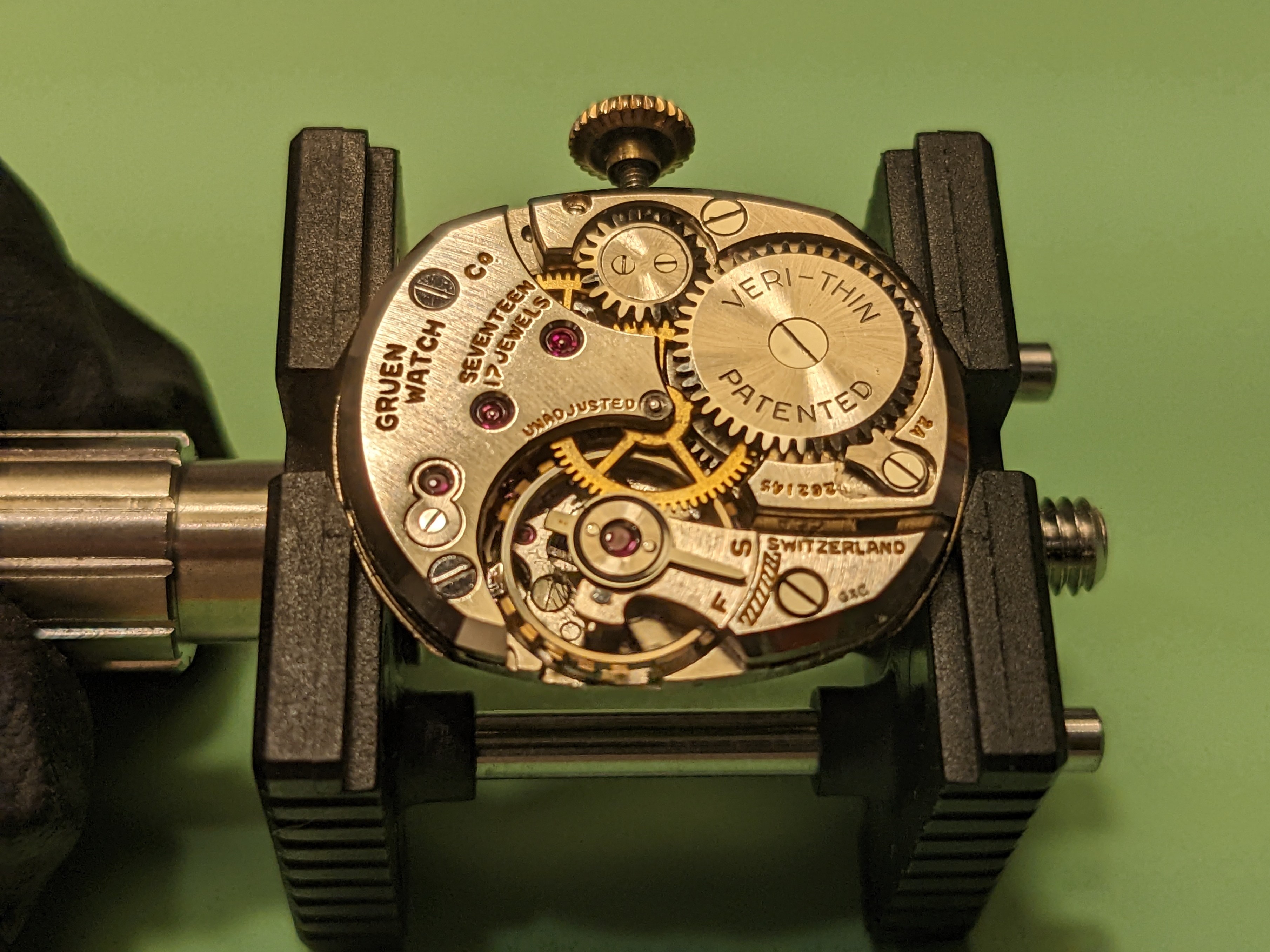

Despite a lack of interchange info in Gruen Material Catalog 453, and slight differences in appearance, the 335 pallet cock slots into the 435. I replaced both the smashed pallet and the bridge with the detached pivot.

/vgforum/index.php?t=getfile&id=9943&private=0

/vgforum/index.php?t=getfile&id=9943&private=0

/vgforum/index.php?t=getfile&id=9942&private=0

/vgforum/index.php?t=getfile&id=9944&private=0

Attachment: PXL_20220918_034618060.jpg
(Size: 1.04MB, Downloaded 1180 times)
Attachment: PXL_20220918_025153212.jpg
(Size: 1.04MB, Downloaded 1198 times)
Attachment: PXL_20220918_053141396.jpg
(Size: 1.34MB, Downloaded 1285 times)
