Caliber 626 (& Caliber 101 disambiguation) [message #11684]

Fri, 22 November 2019 14:30

Case
Messages: 1178
Registered: May 2019
Location: Cincinnati

Gruen Authority

[Rampant edits] Had previously posted this on the sister caliber 103 thread, but I noted the 101/626 had not been documented. Thanks to Liz for help below with disambiguation of the two.

Here is an early WSC variant. 8 3/4 ligne. 16J, 3ADJ. Dial back stamped "101" (dials interchangeable). Front plate has the FHF patent, plus the lot # "17 7577". Could it be the maker was kind enough to mark the make year? "17" = 1917?

Dr. Rannft has cataloged this as the FHF Factory Robert (Gruen Factory R) 8.75'" movement herehttp:// www.ranfft.de/cgi-bin/bidfun-db.cgi?10&ranfft&&2 uswk&Gruen_101. Haven't seen any front plate marks for Factory R, to see if my example matches the style & indicates it was finished there or ebauched to another factory. Most likely sourced directly from FHF/Factory R. Different from the 101, which was sourced as an ebauche from FHF & finished at the Gruen factory (first as regular adjusted, then ca1922 becoming a "precision" caliber)

Caliber 626
Configuration: Hunter
Example date: approx. 1917
Diameter: 8.75 ligne (approx 19.7mm)
Jewel count: 16
Adjustments: 3
Dial feet positions: 10 & 4
Dial release mech: release screws on back plate

/vgforum/index.php?t=getfile&id=5566&private=0

/vgforum/index.php?t=getfile&id=5566&private=0

/vgforum/index.php?t=getfile&id=5567&private=0

/vgforum/index.php?t=getfile&id=5568&private=0

/vgforum/index.php?t=getfile&id=5569&private=0

/vgforum/index.php?t=getfile&id=5570&private=0

Attachment: 101 WSC (back).jpeg
(Size: 764.45KB, Downloaded 1634 times)

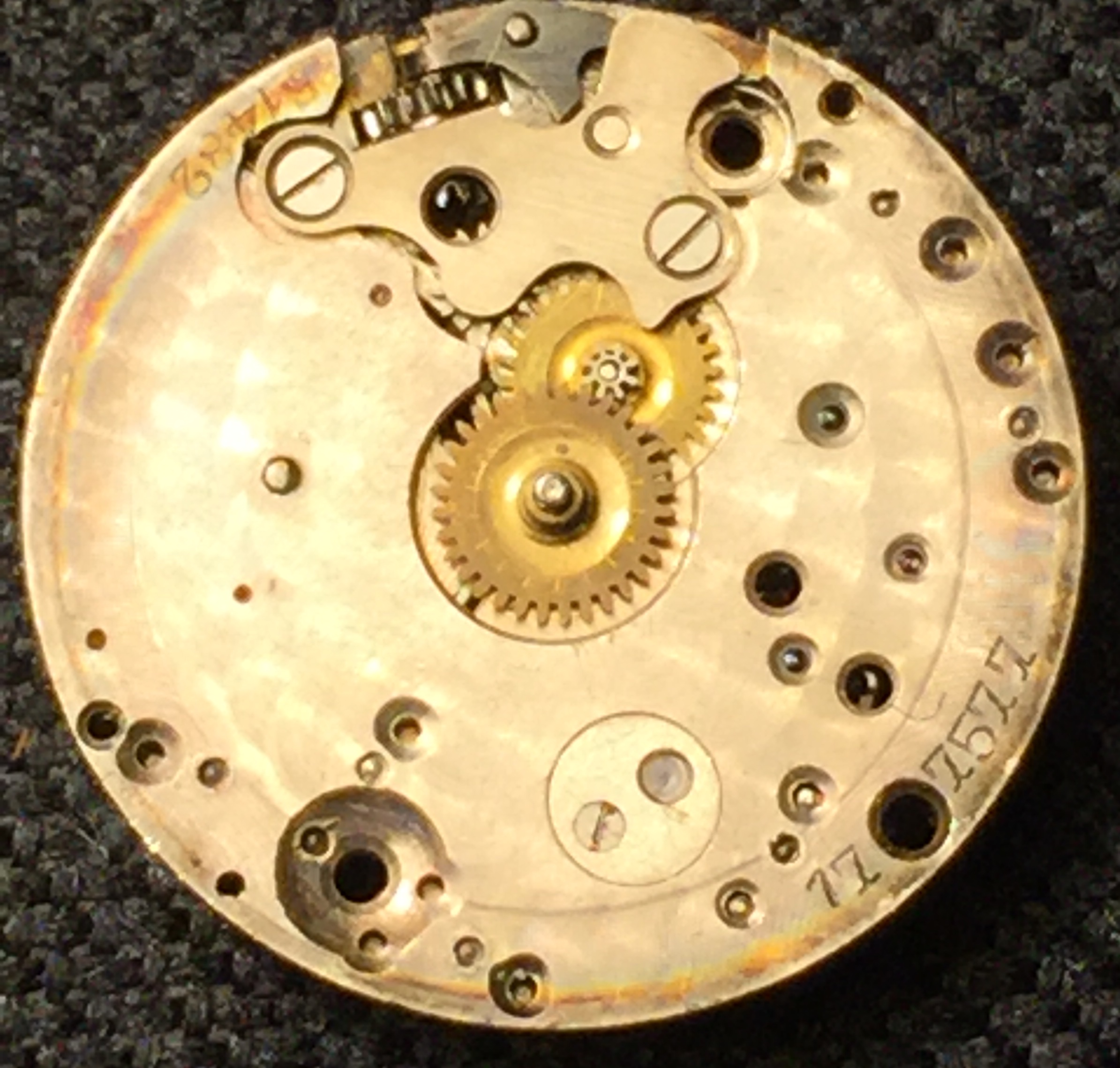

Attachment: 101 WSC (dial back).jpeg
(Size: 883.49KB, Downloaded 1541 times)

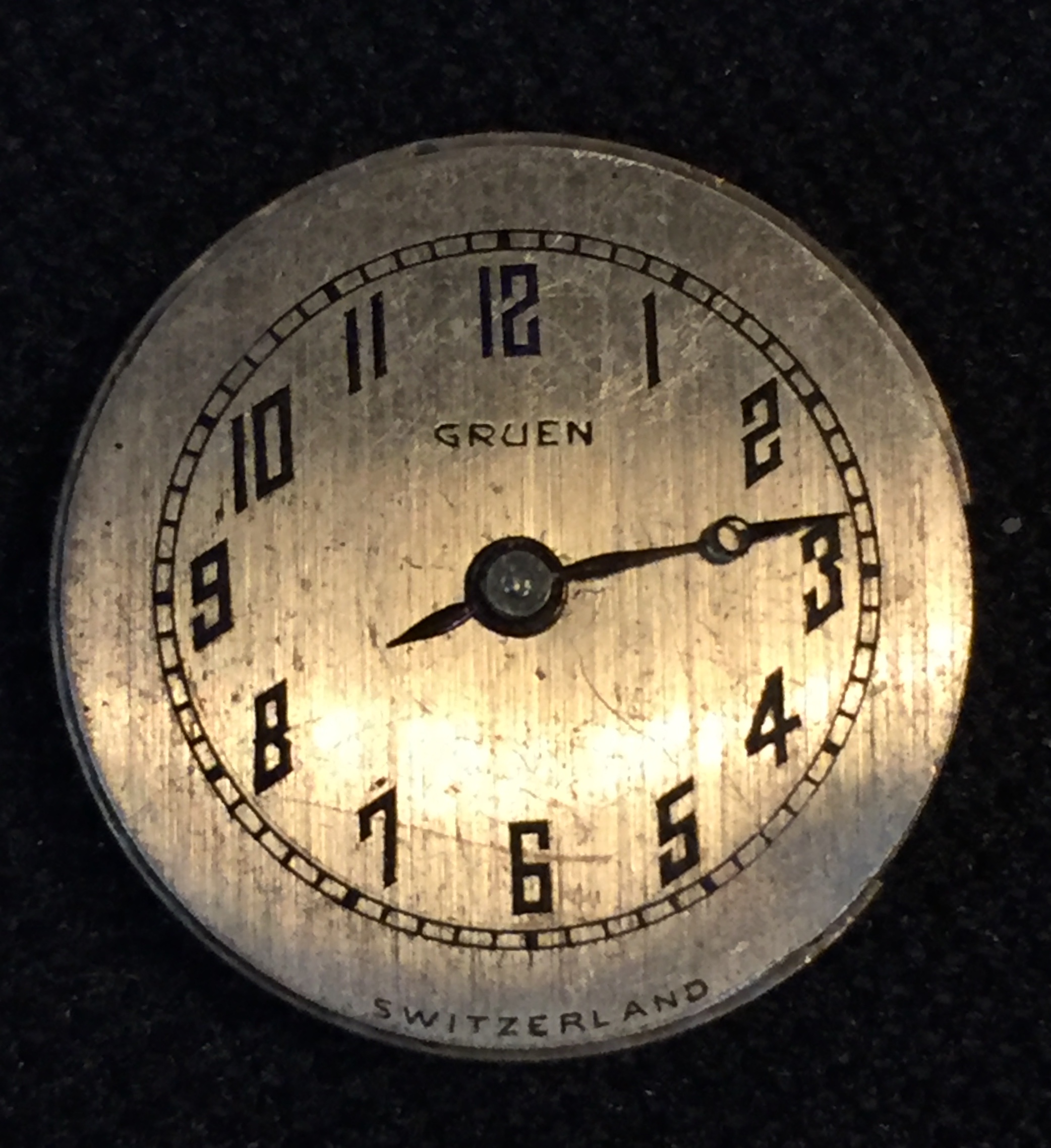

Attachment: 101 WSC (dial front).jpeg
(Size: 825.37KB, Downloaded 1568 times)

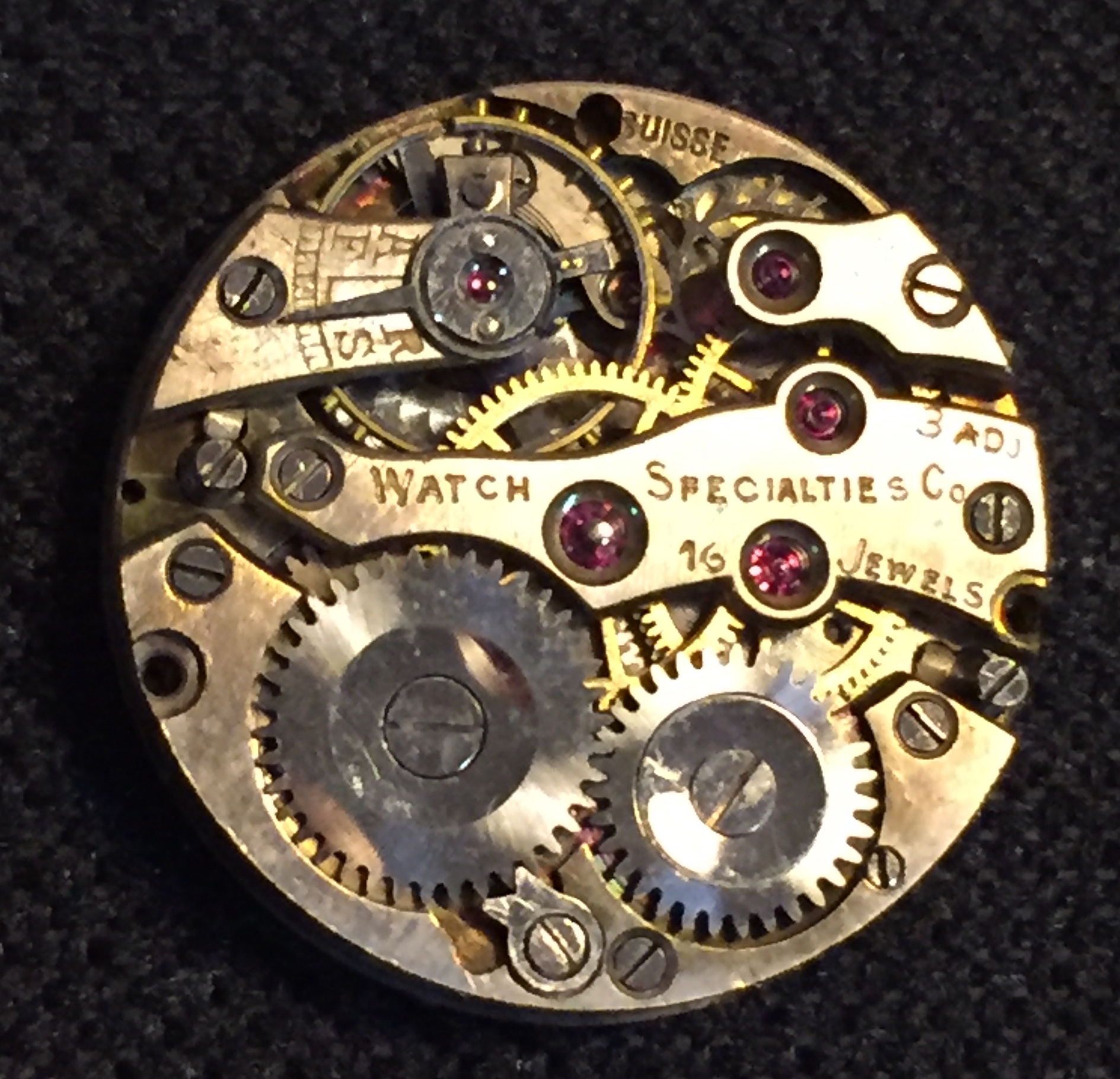

Attachment: 101 WSC (front).jpeg
(Size: 858.05KB, Downloaded 1591 times)

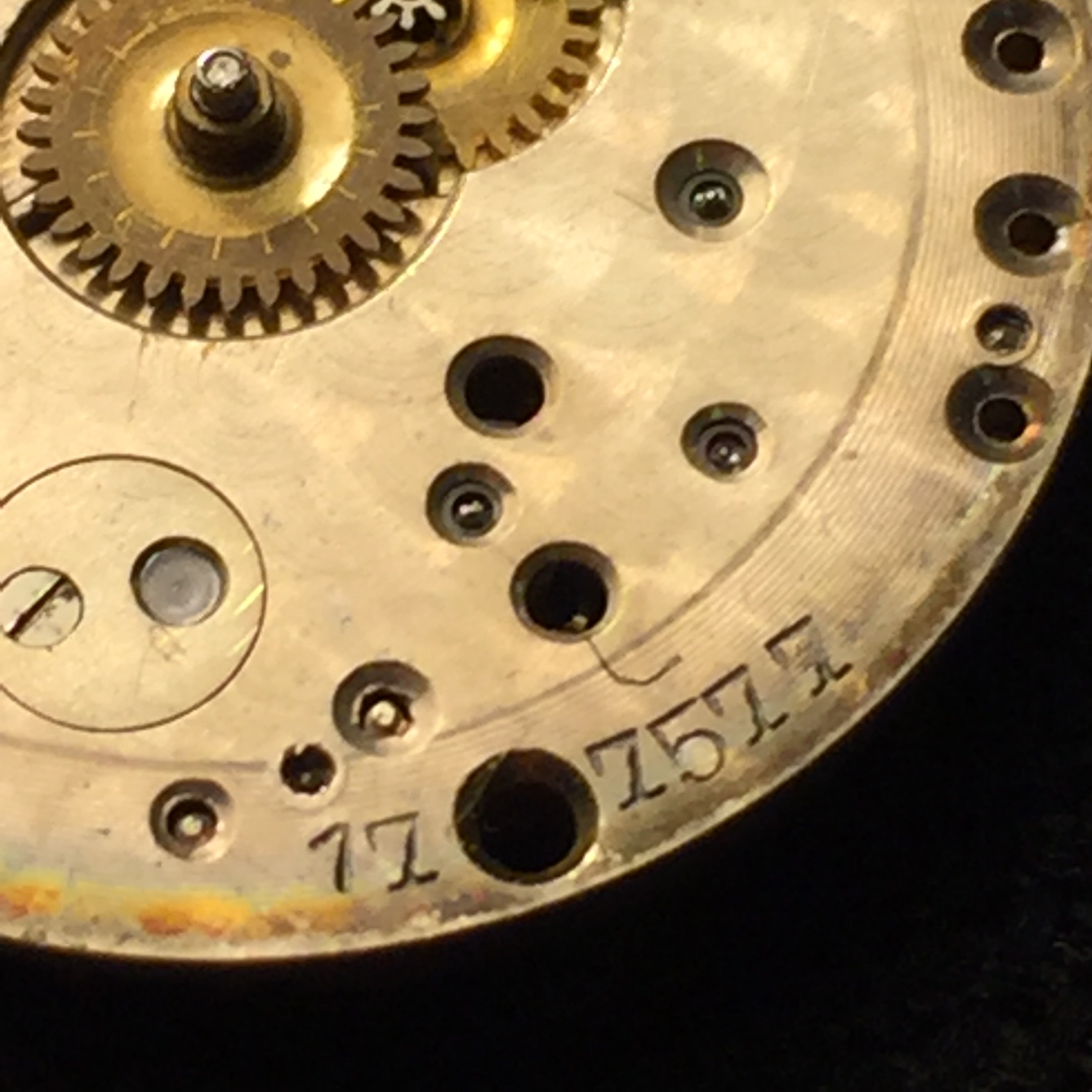

Attachment: 101 WSC (lot).jpeg
(Size: 754.90KB, Downloaded 1560 times)

My two caveats:
1) I'm wrong many times a day --just ask my wife!
2) Always seeking to learn more

[Updated on: Mon, 25 November 2019 14:48]
